Bolt Gripper Rails

Colorado Wire Inc. offers the sand and gravel industry a complete line of screen rail products. The Herren Brand Heavy Duty Steel Clamp Down Rails are specifically designed to last longer than regular steel rails. The Herren Double Faced steel rail will outlast a regular steel rail up to 4 times.

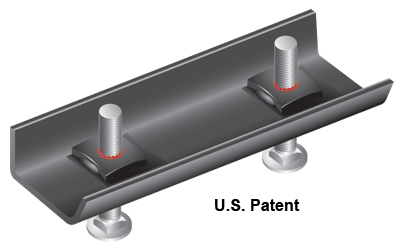

A STANDARD FEATURE on all HERREN RAILS...

the BOLT GRIPPER that keeps bolts from falling out of the rails,

and the HOLE SUPPORT PATCH making your rails stronger... and easier to change

Cut Your Bolt Cost by 50%

Bolt Gripper Rails last longer than regular steel rails

Insert paragraph about Bolt Gripper Rails here...

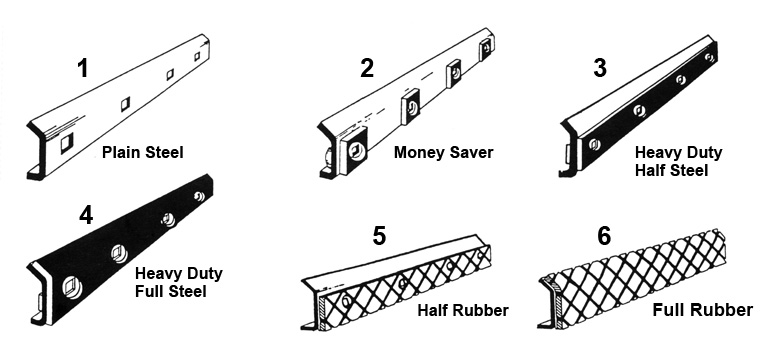

Available in Six Styles - Made to Manufacturers Dimensions

Bolt Gripper Rails available in 6 styles for all your sand, gravel and aggregate industry needs

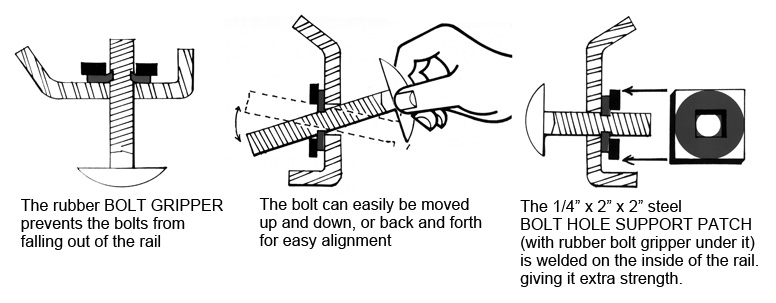

Bolt Gripper and Bolt Hole Support Patch saves you money by simplifying installation and strengthening the rails so they last longer

The BOLT GRIPPER and the BOLT HOLE SUPPORT PATCH is a standard feature on all the following original manufactured style rails, and any other manufactured styles.

Herren Brand Rails are available in many manufactured rail styles

When ordering or requesting a quote for Bolt Gripper Rails, you will need to make the following measurements

Length (L)
Number of holes
Make of screen
Bolt hole size
Distance between holes

diagram for measuring your bolt gripper rails

Measuring Diagram

Printable Order Form
